Prefabricated Modular Expandable Container Houses with Bedroom
PDF Download Available
Exterior Wall Panels
Wainscoting

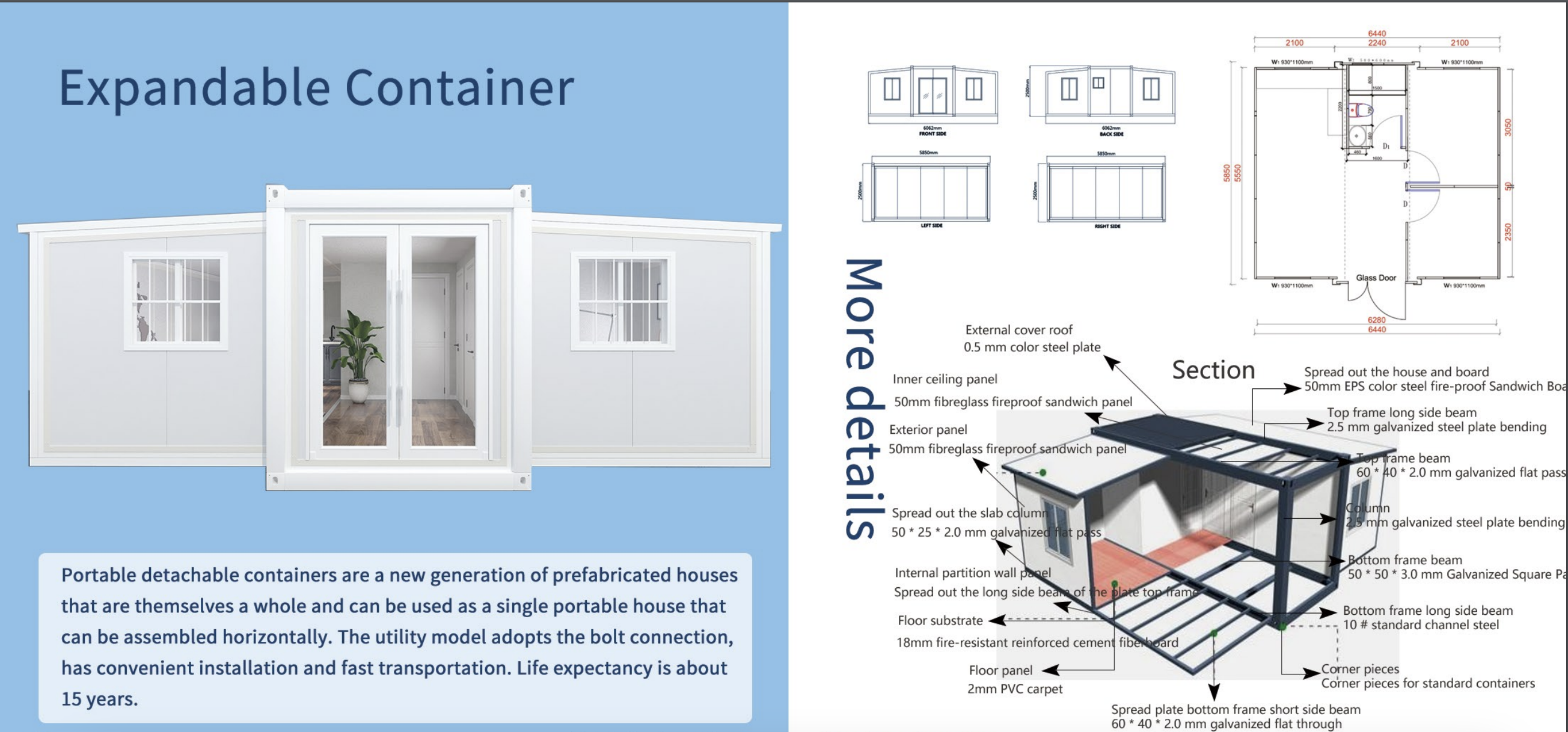

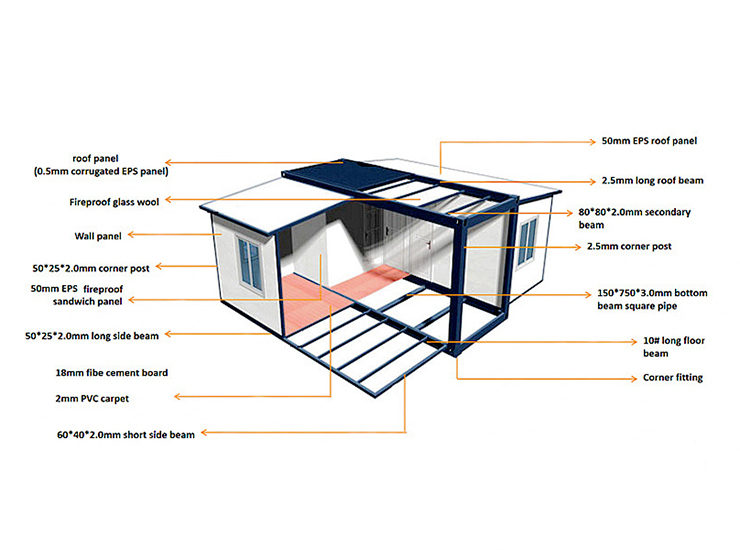

Main material | Galvanized steel structure with sandwich wall panel and doors, windows, etc. |
Weight | 2000-5500 kgs |
Color | White, blue, grey, brown, customized color, or adding colorful cladding |
Steel structure | 2.5 mm hot galvanized steel structure with 4mm corner casts and in the middle and 15mm laminate board on both sides; (1) Floor: 18mm MgO board |
Columns | 2.5 mm hot galvanized steel structure |
Wall | 75mm EPS/rock woll sandwich panel, or customized PU sandwich panel |
Roof | 3-4mm Hot galvanized steel structure with 4 corner casts and(1) Galvanized steel roof covering; |
Door | (1) Steel door (2) Aluminum double glass door |
Window | 920*920mm, double glass (1) Plastic steel window (2) Aluminum double glass window (3) Cut-bridge aluminum double glass window |
Connection kits | PVC Connection kits for ceiling, floor and walls. |
Optional Accessories | Furniture, kitchen (including cabinet and sink, bathroom (including toilet, washing basin, mirror, shower room), electrical |
Advantage | (1) Fast installation: 2 hours/set, save labor cost; (2) Anti-rust: all material use hot glavanized steel; |

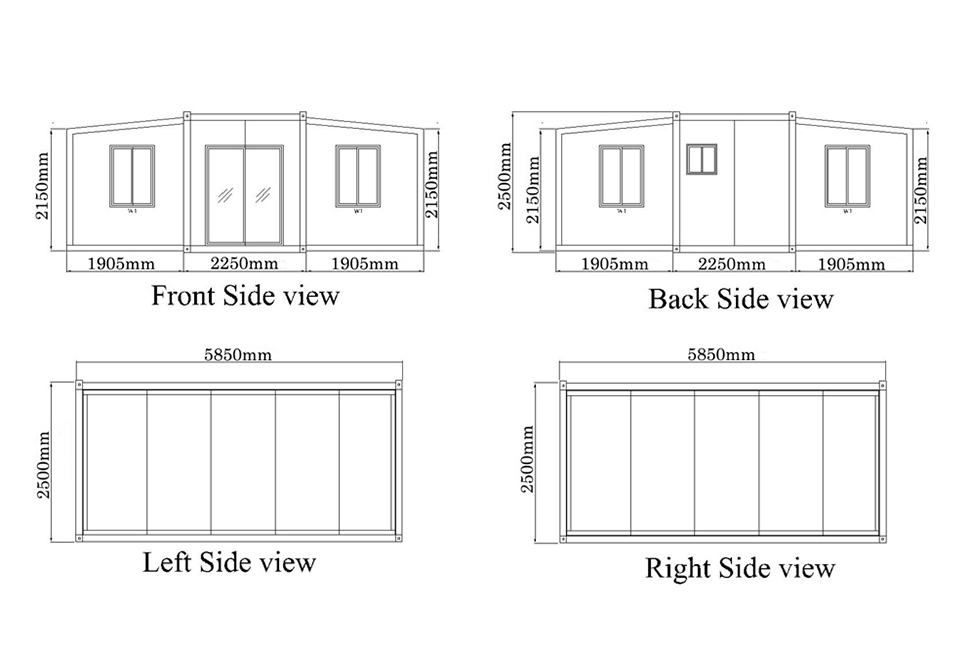

Product Specification | Expanded Dimensions | Internal Dimensions | Folding dimensions | Occupied area |

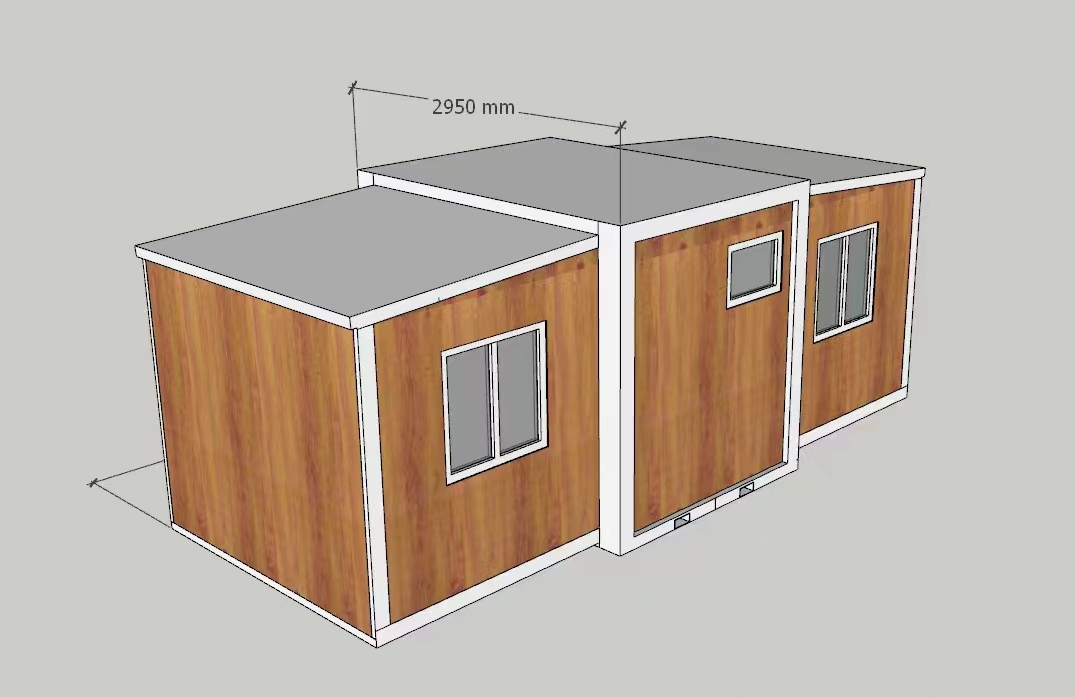

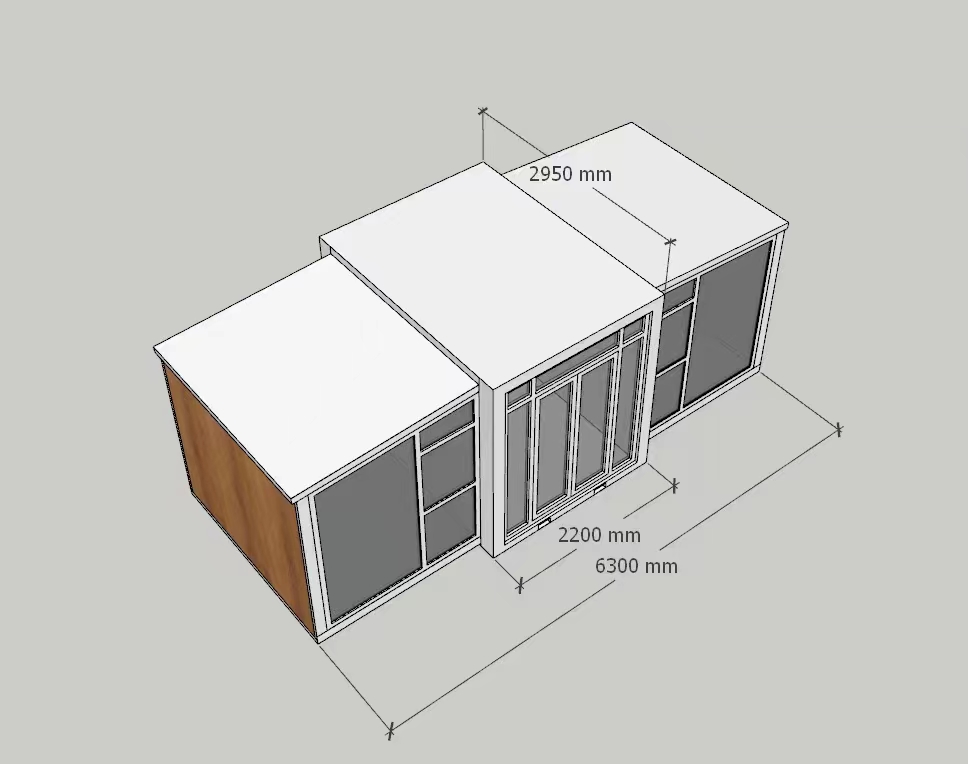

10ft | L2950*W6300*H2480 | L2510*W6140*H2240 | L2950*W2200*H2480 | 18.5m² |
20ft | L5900*W6300*H2480 | L5460*W6140*H2240 | L5900*W2200*H2480 | 37m² |
30ft | L9000*W6220*H2480 | L8540*W6060*H2240 | L9000*W2200*H2480 | 56m² |
40ft | L11800*W6220*H2480 | L11540*W6060*H2240 | L11800*W2200*H2480 | 72m² |
2.9m (H) is available
| Model | 20ft Expandable Container Home | 30ft Expandable Container Home | 40ft Expandable Container Home |
|---|---|---|---|
| Building Area | 37m² (398 sqft) | 56m² (603 sqft) | 73m² (786 sqft) |
| Expand Size for House | 5.9m (L) * 6.32m (W) * 2.48m (H) or 2.9m (H) | 9m (L) * 6.24m (W) * 2.48m (H) or 2.9m (H) | 11.8m (L) * 6.32m (W) * 2.48m (H) or 2.9m (H) |
| Folding Size for Travels | 5.9m (L) * 2.2m (W) * 2.48m (H) or 2.9m (H) | 9m (L) * 2.2m (W) * 2.48m (H) or 2.9m (H) | 11.8m (L) * 2.2m (W) * 2.48m (H) or 2.9m (H) |

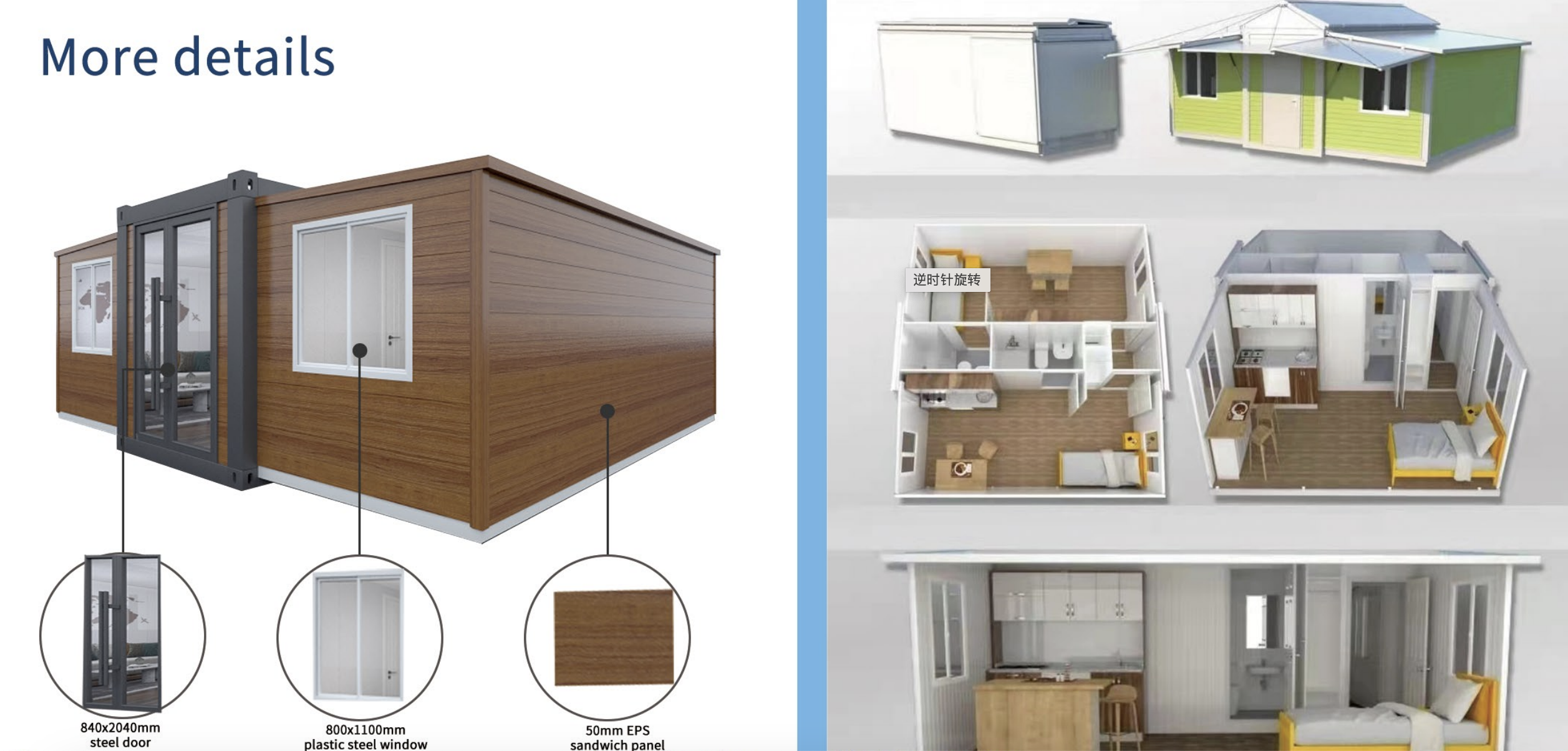

| Internal Layout Plan | 1/2 bedroom, 1 bathroom, 1 kitchen, 1 living room | 1-4 bedroom, 1 bathroom, 1 kitchen, 1 living room | 1-6 bedroom, 1/2 bathroom, 1 kitchen, 1 living room |
| Color | White, Black, Wood brown (customizable colors) | White, Black, Wood brown (customizable colors) | White, Black, Wood brown (customizable colors) |
| Installation | 90% prefabricated at factory, 4-5 people in one day | 90% prefabricated at factory, 4-5 people in one day | 90% prefabricated at factory, 4-5 people in one day |

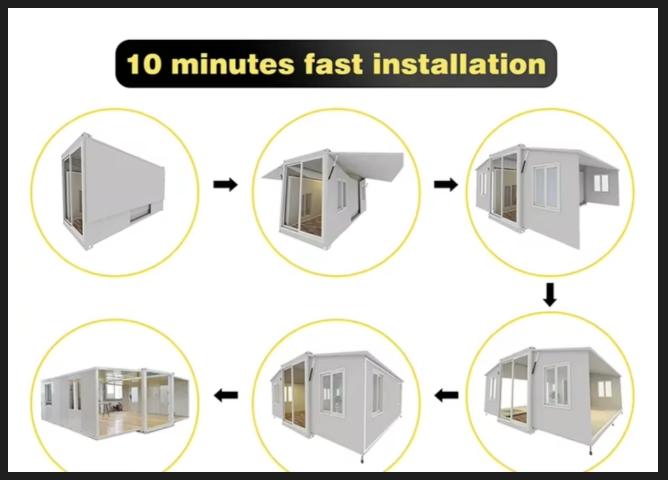

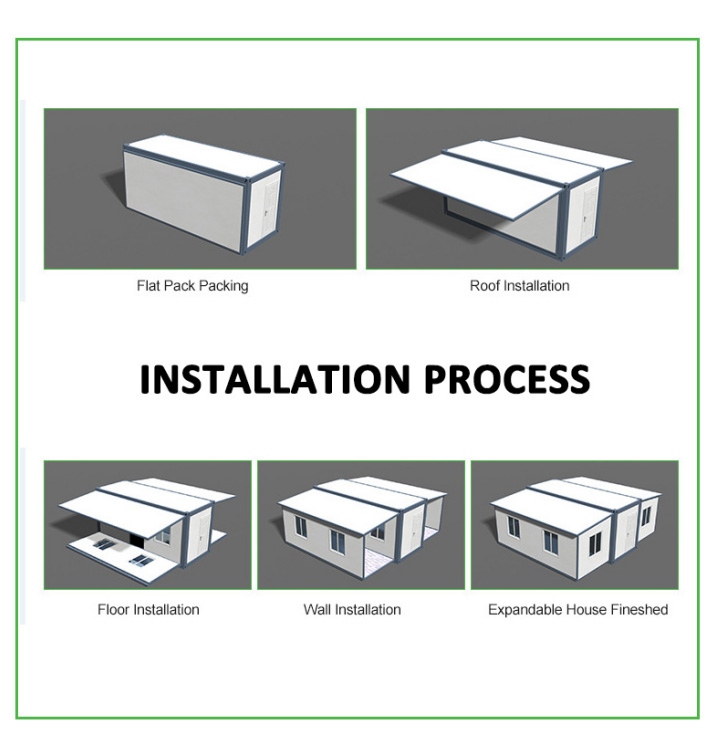

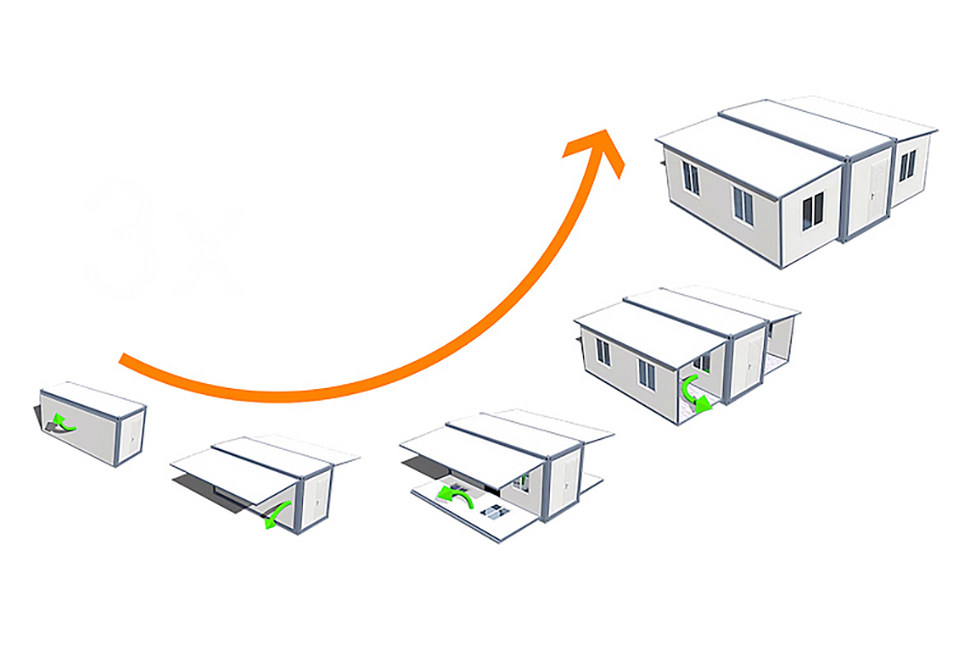

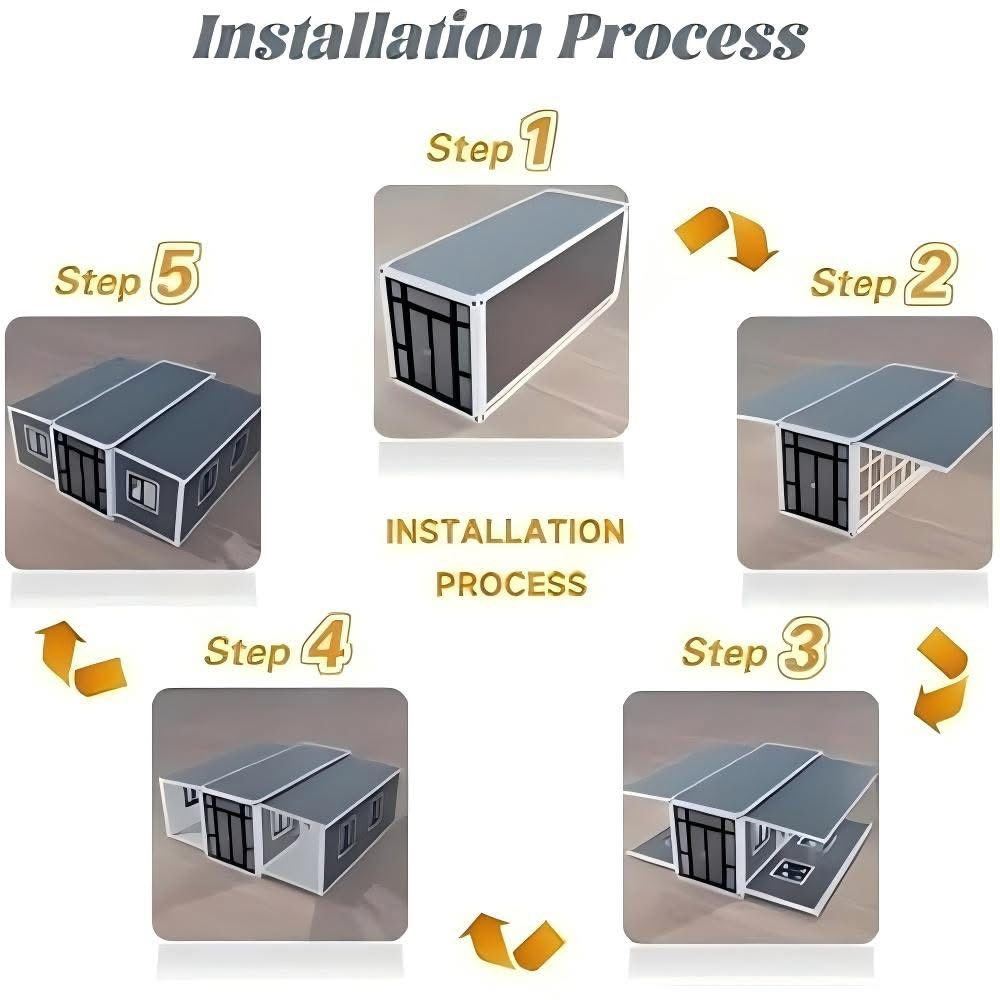

EASY INSTALL
The extended container house has super convenience:
Other layout can be customized, please contact me for helping
Features
FAQ:
1. Can the interior layout be customized for 40ft expandable container houses for sale?
Yes, layouts can be tailored to include bedrooms, bathrooms, kitchens, or offices as per customer requirements.
2. What color options are available for 40ft expandable container homes?
The exterior and interior colors can be customized to suit preferences or brand requirements.

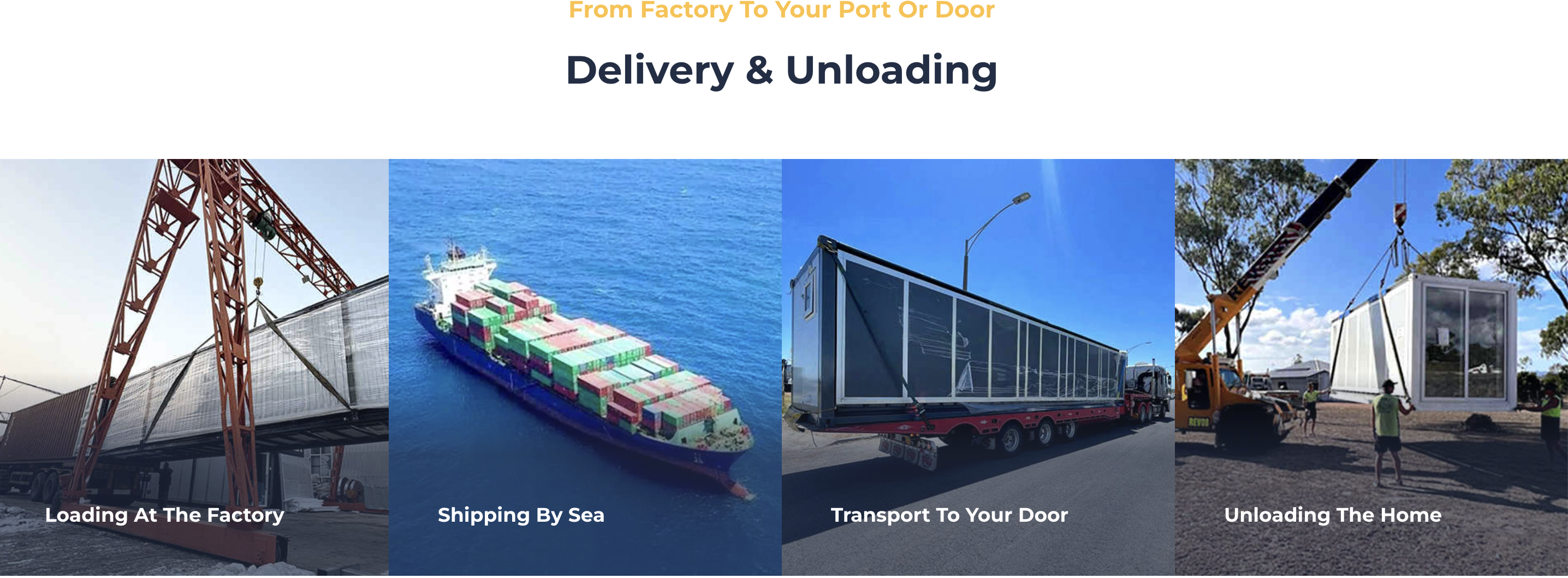

3. How are prefab expandable container houses transported?
They are shipped in a folded, compact state and can be easily transported by truck, ship, or rail.
4. How long does it take to install an expandable foldable container house?
Installation usually takes 2-4 hours and requires minimal labor and tools.
5. Do I need a crane for installation?
A crane or forklift may be required for unloading and initial placement, depending on the size and model.

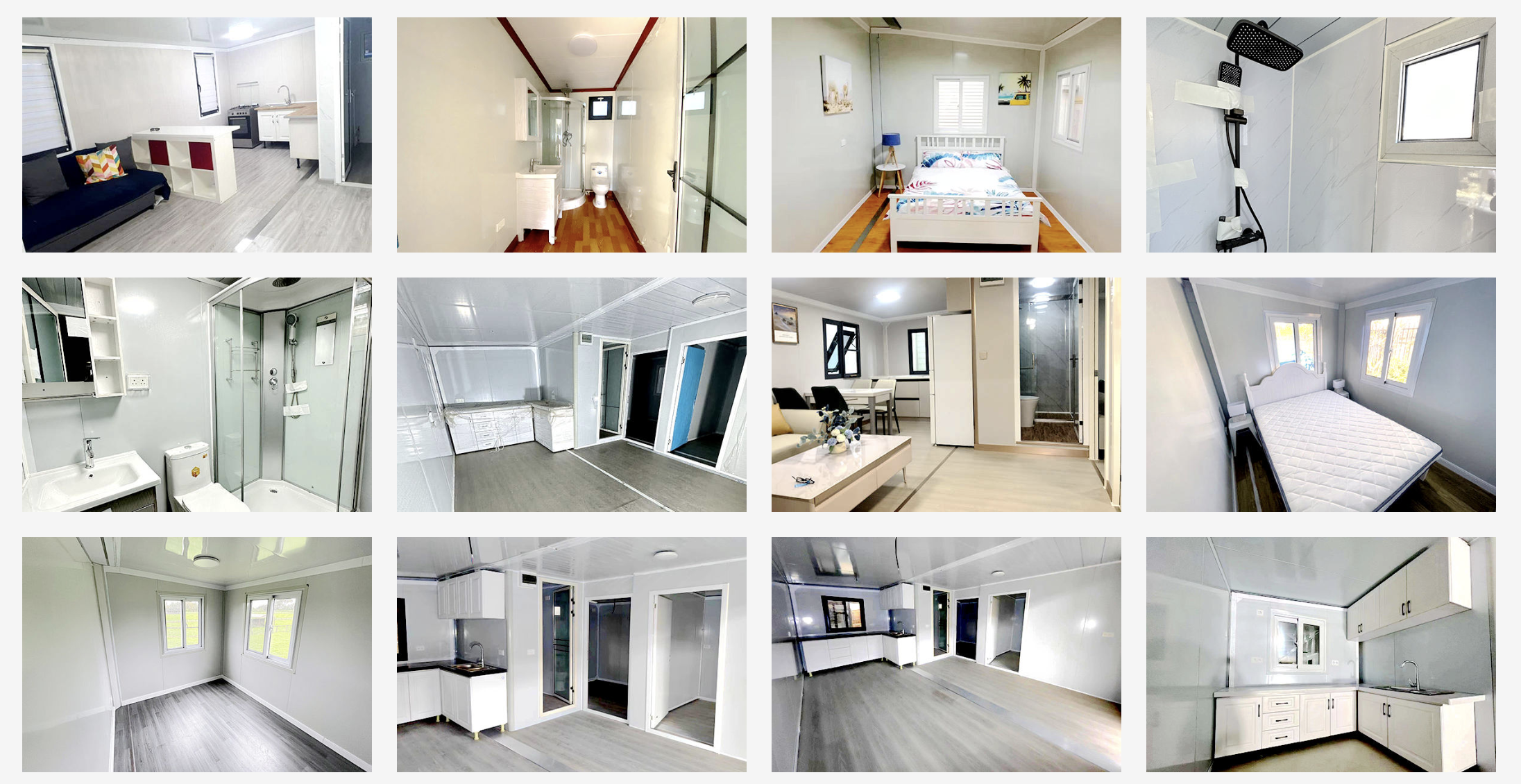

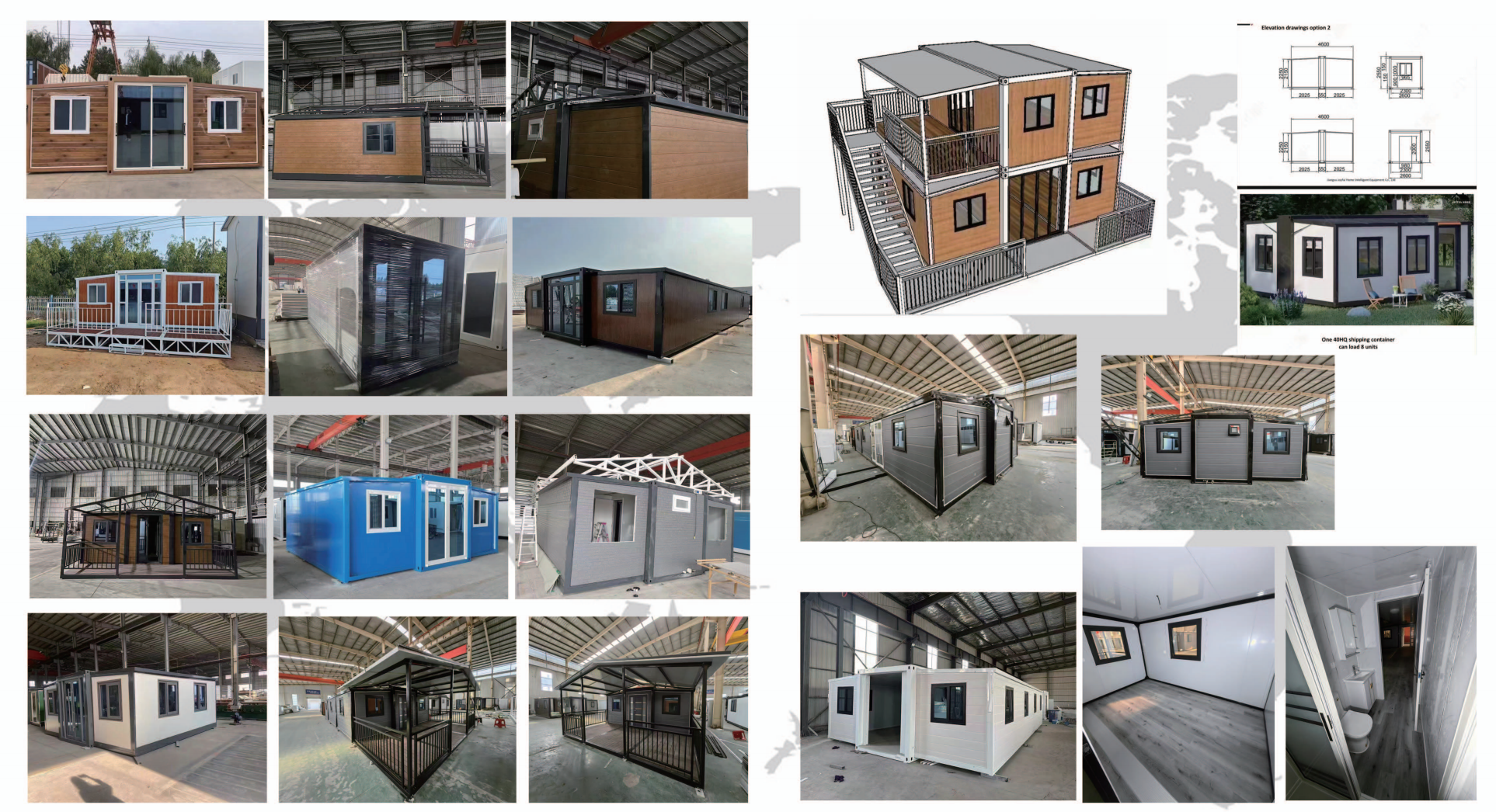

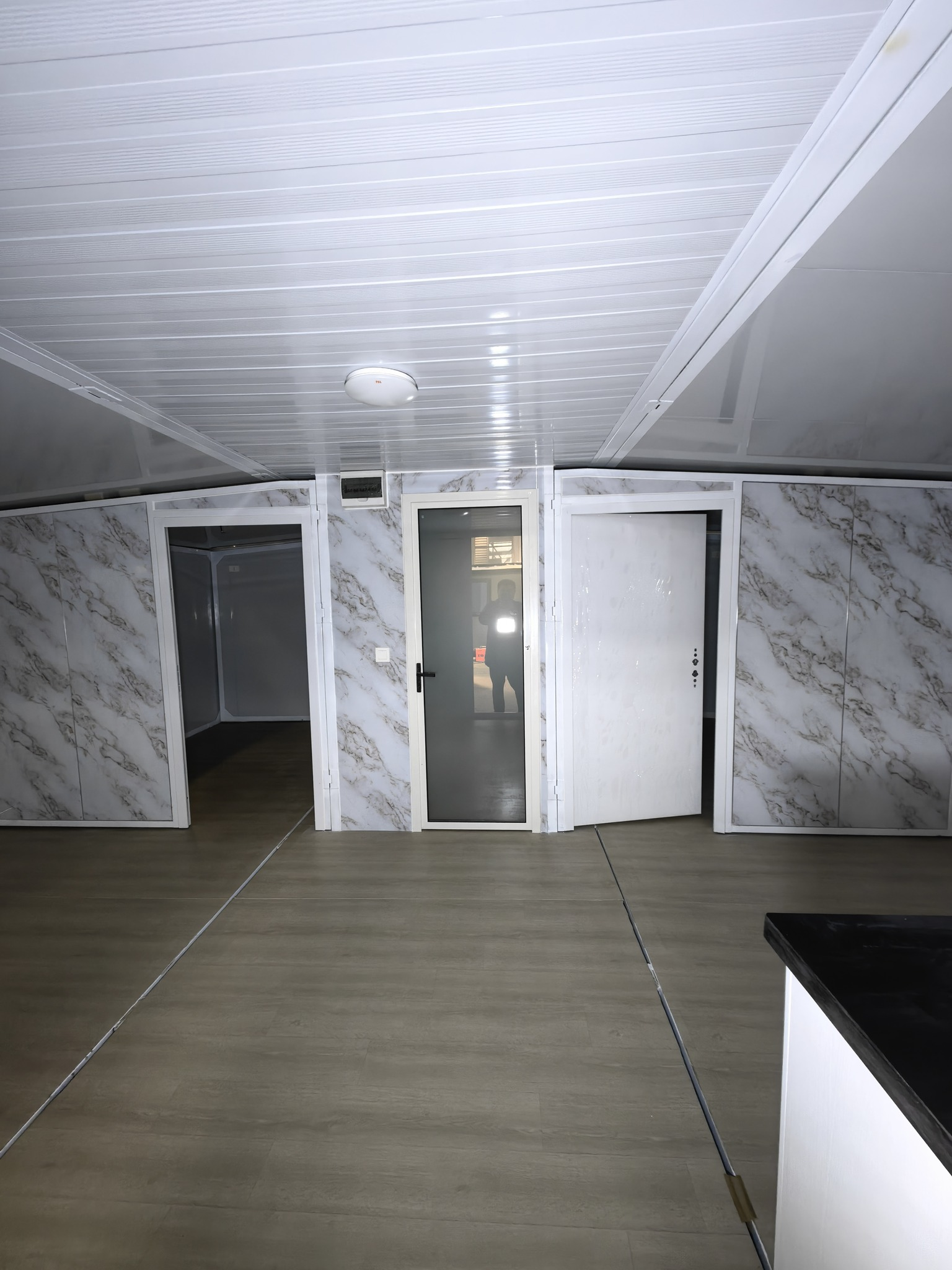

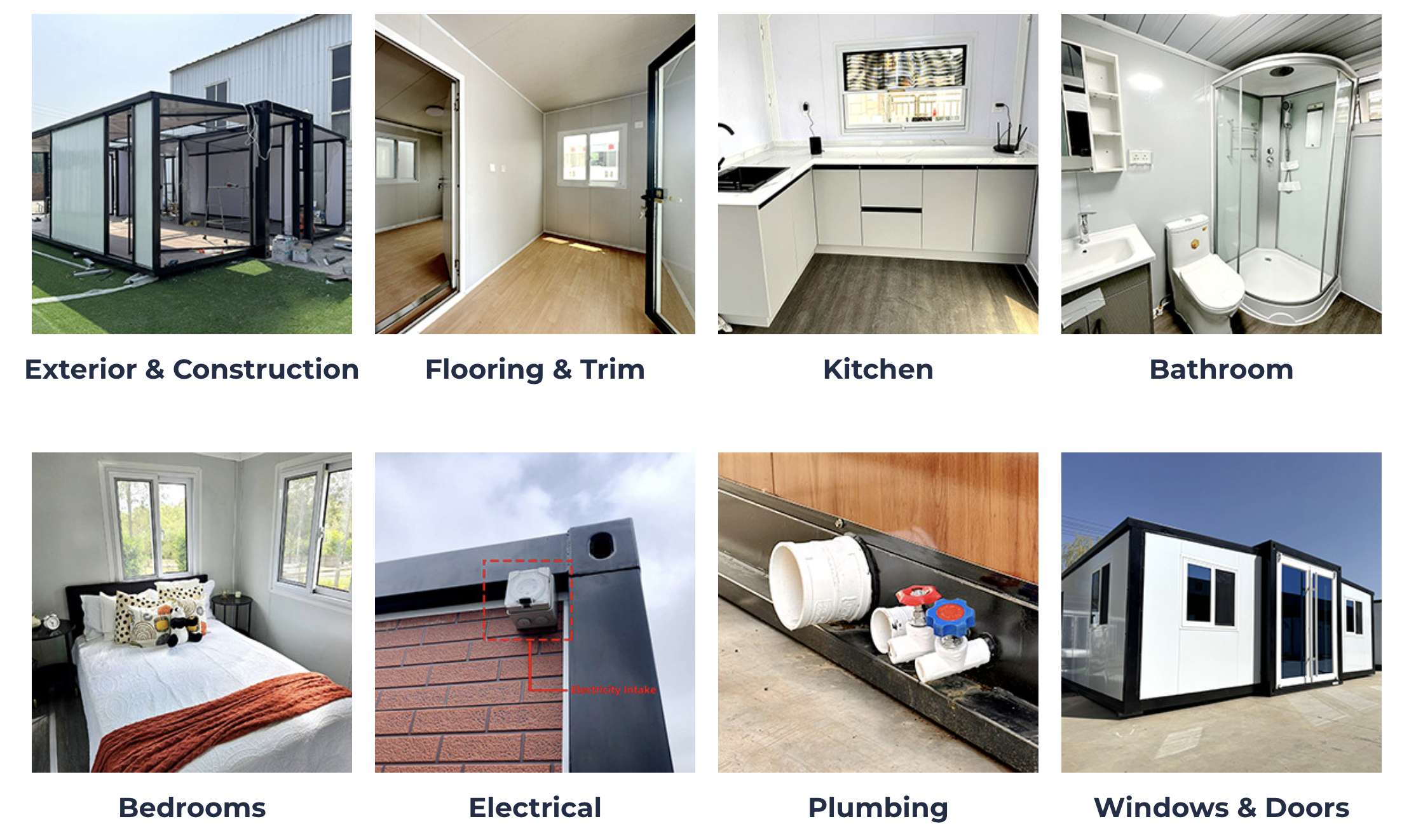

More photos for reference
